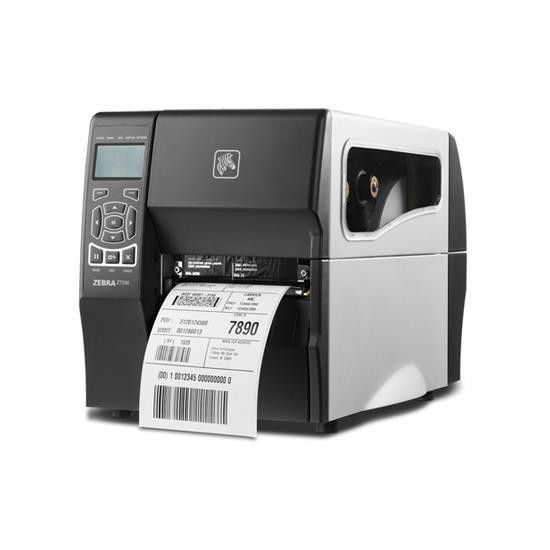

Zebra ZT230 (ZT23042-T3E200FZ)
Industrial label printer, language ZPL and EPL, 203 dpi, thermal transfer with USB, RS232, Ethernet 10/100, peeler, liner take-up spindle and LCD display.
Zebra’s most affordable industrial printers, the ZT200™ Series, incorporate extensive customer feedback and the learnings from legacy printers—creating innovative printers with a space-saving design. Featuring Zebra’s Link-OS® environment, the ZT200 Series provides users with effortless setup, intuitive operation and easy service and maintenance.
Engineered for Ease of Use, Versatility and Outstanding Value
Whether you are adopting barcode technology for the first time or upgrading existing printer models, the ZT200 Series is the right choice for a variety of labeling applications. These innovative printers provide many user benefits, and they are ENERGY STAR® qualified to save you money throughout their lifecycle.
Small Footprint. Easy to Maintain
The ZT200 Series offers a streamlined design and smaller footprint that takes up less physical space than the legacy S4M™ printer. ZT200 Series printers require minimal operator training and benefit from tool-less standard component maintenance and a durable design to minimize service.
Simple to Integrate and Manage
Featuring Zebra’s Link-OS environment — an innovative operating system combining a powerful Multiplatform Software Development Kit (SDK) and software applications—ZT200 Series printers are easy to integrate, manage and maintain from any location around the globe. Your IT staff will also appreciate the backwards compatibility, since it allows for new printers to be up and running with minimal time and effort.
Cloud Technology
Featuring the Link-OS Cloud Connect application, these printers can connect to the Cloud directly and securely, forwarding data from any port.
Meets a Variety of Application Needs
Durable and small in size, ZT200 Series printers are ideal for a variety of applications from manufacturing and transportation and logistics, to healthcare and retail. From item and specimen tagging to shelf-edge and packaging labeling, these printers can meet the demands of your operations.
ZT230
• Rugged all-metal case for long-lasting use
• 450m ribbon capacity for increased uptime and fewer ribbon changes
• Graphical user interface printer setup and control
• Ideally suited for barcode-labelling applications that require more frequent label changes
Compatibilité des matériaux

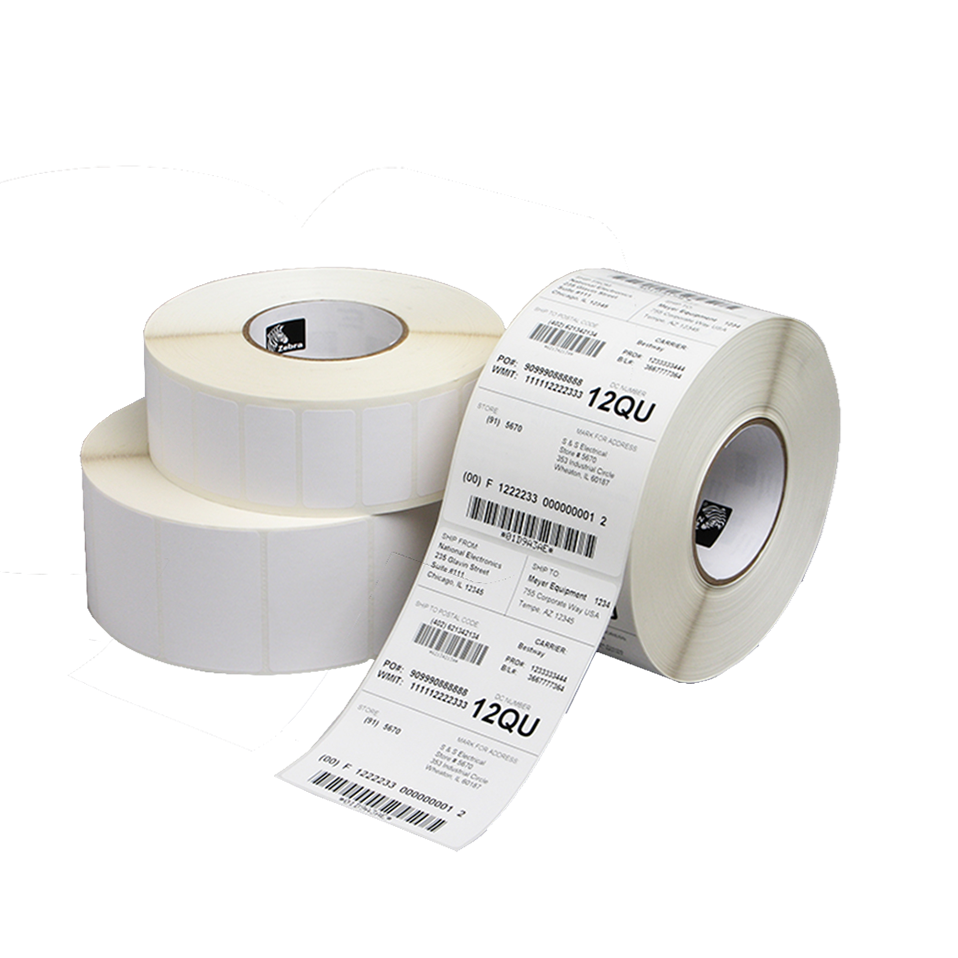

Étiquettes recommandées: 76180 / 76059 / 76060

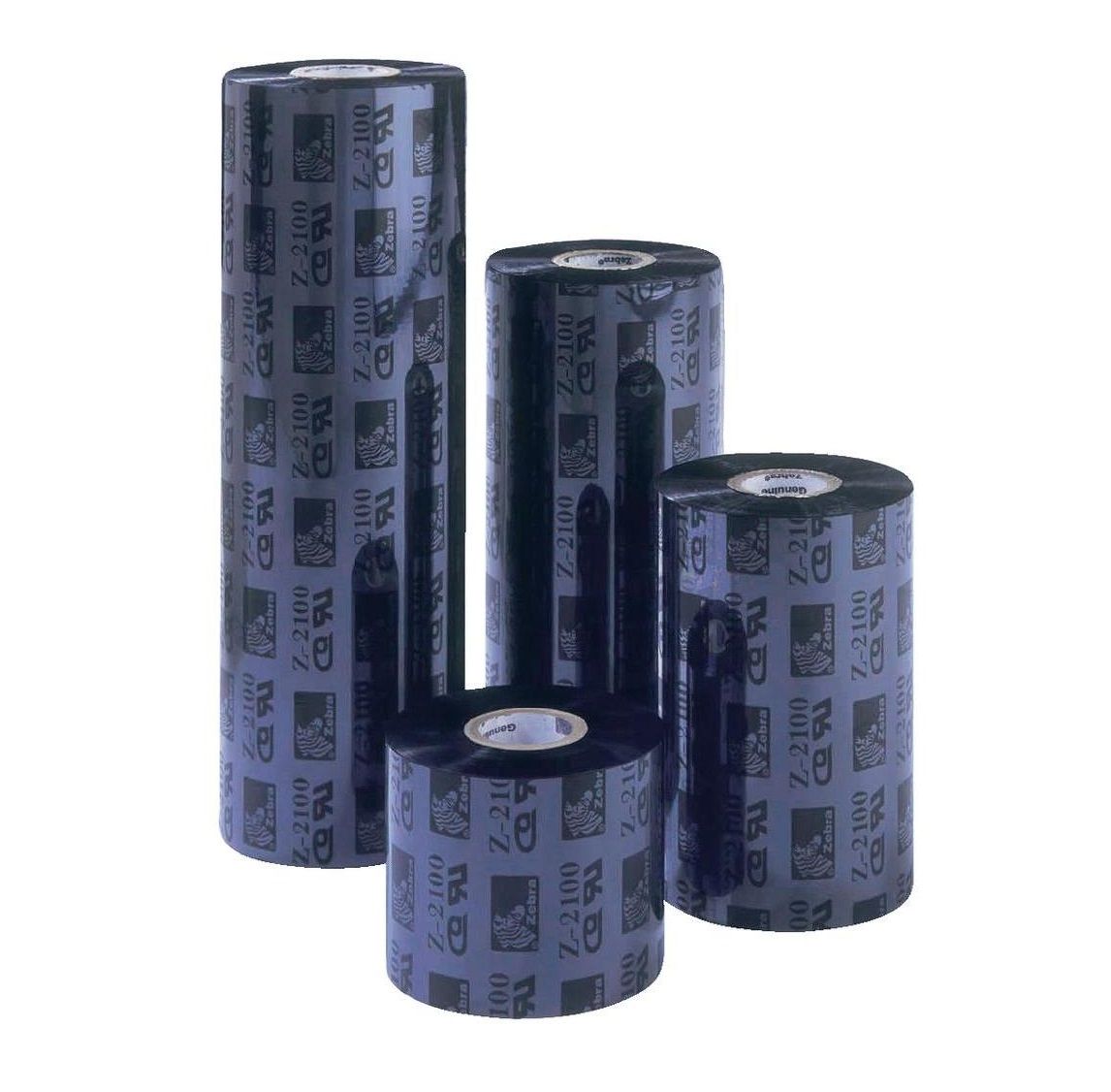

Rubans recommandés: 03200BK11045 / 02300BK11045 / 02300BK11030 / 02100BK11045

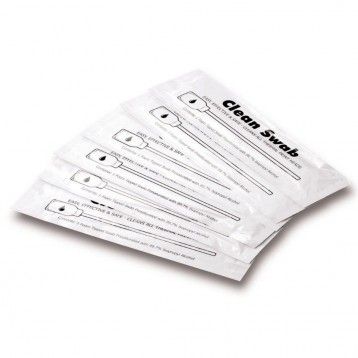

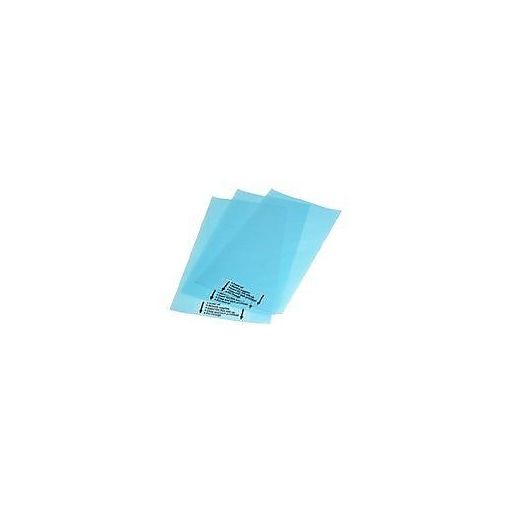

Kit de nettoyage: 44902 / 47362
Logiciel: 13831-002
Zebra ZT230 (ZT23042-T3E200FZ)
STANDARD FEATURES • Print methods: thermal-transfer • Construction: metal frame with metal media cover • Bi-fold media door with large clear window • Side-loading supplies path for simplified media and ribbon loading • Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality • Bi-color LEDs for quick printer status • Icon-based LCD multilingual graphical user interface and full function keypad • ENERGY STAR qualified
COMMUNICATIONS • USB 2.0, RS-232 Serial ports, Ethernet 10/100
PRINTER SPECIFICATIONS • Resolution: 8 dots per mm/203dpi • 12 dots per mm/300dpi (optional) • Memory: 128MB flash (58MB user-available), 128MB DRAM (Standard) • Maximum Print Width: 4.09"/104 mm • Maximum Print Speed: 6"/152 mm per second • Media Sensors: Transmissive and reflective sensors • Print Length 203 dpi: 157"/3988 mm ; 300 dpi: 73"/1854 mm
MEDIA CHARACTERISTICS • Maximum Media Width: 0.75"/19.4 mm to 4.50"/114 mm • Maximum Media Roll Size: 8.0"/203 mm O.D. on a 3.0"/76 mm I.D. core ; 6.0"/152 mm O.D. on a 1.0"/25 mm I.D. core • Thickness: 0.003"/0.076 mm to 0.010"/0.25 mm • Media Types: Continuous, die-cut, notch, black mark
RIBBON CHARACTERISTICS (Thermal-transfer option only) • Ratio: 3:1 media-roll-to-ribbon ratio • Width: 40mm/1.57" to 110mm/4.33" • Ribbon Setup: Ribbon wound ink-side out, core to core
OPERATING CHARACTERISTICS • Environmental Operating Temperature: Thermal transfer = 40ºF to 105ºF/5º to 40ºC ; Direct thermal = 32ºF to 105ºF/0º to 40ºC • Operating Humidity: 20% to 85% non-condensing • Storage/Transportation Temperature: -40ºF to 140ºF/ -40º to 60ºC • Storage Humidity: 5% to 85% non-condensing • Electrical Universal auto-ranging (PFC-compliant) power supply 100-240 VAC; 47-63 Hz • ENERGY STAR-compliant • Agency Approvals: IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3 • Markings: cTUVus, CE Marking, FCC-B, ICES003, VCCI, C-Tick, NOM, S-MARK, CCC, GOST-R, KCC, BSMI, UkrSepro
PHYSICAL CHARACTERISTICS (ZT230 closed) • Length: 432mm/17", Width: 242mm/9.5", Height: 277mm/10.9", Weight: 9.1kg/20lb
SOFTWARE SOLUTIONS • Document design: Quickly design a customised print solution using your business data and Zebra’s intuitive plug-and-print design tools • Device integration: Zebra offers apps and products designed to help you integrate Zebra devices into your existing systems • Device management: Manage your print operations locally and globally with Zebra’s suite of device-management tools • Developer tools: Provide you with the tools you need to create your own apps, including documentation, source code, programming languages, templates and more
FIRMWARE • ZPL II™ • EPL • Zebra Unicode Solution • ZBI 2.0™ (optional)
BARCODE SYMBOLOGIES • Linear barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN with 2 or 5 digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code • 2-Dimensional: Aztec, Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF417, TLC 39, RSS-14 (and composite)
MEDIA HANDLING • Peel — a front-mount, passive-peel with liner take-up spindle (factory-fit only)
OPTIONS AND ACCESSORIES • Communication: ZebraNet® a/b/g/n Print Server (internal) • Centronics® Parallel port (internal) • Media Handling: Peel — a front-mount, passive-peel with no take-up spindle • Cutter — a front-mount guillotine cutter • Real Time Clock (RTC) • Keyboard display unit (KDU)
