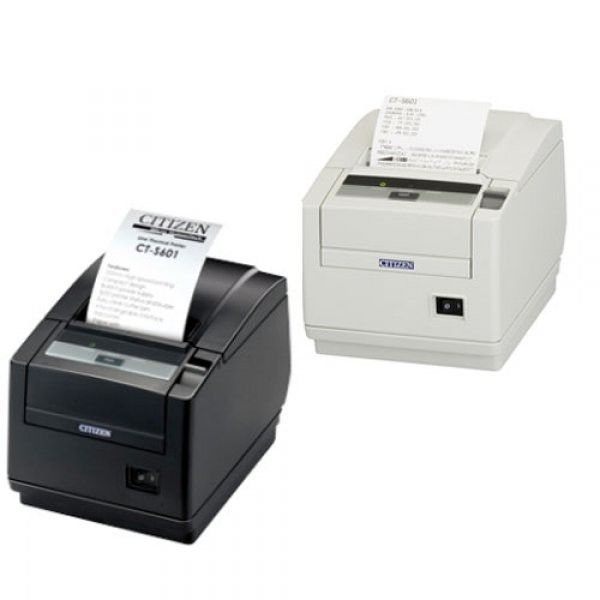

Citizen CT-S601II
CT-S601II is a full-function mid-range POS printer. Capable of print speeds of up to 220mm/sec, with high resolution from a tough, long-life thermal printhead, the CT-S601II incorporates an integrated power supply, self-retracting cutter and a top paper exit.
Key Benefits
• Paper exit: Top exit - ideal for all retail applications
• Paper width: Variable paper width - 58, 60, 80 and 82.5 mm
• Paper load: Easy paper loading
• Printing Speed: Fast print out of receipts - up to 200mm per seconds
• Paper thickness: Paper thickness up to 0.150mm
• Display: LCD display for easy configuration and operation
• Low space requirement - integrated power supply enables clean work station
• Mobile-POS ready
• Page mode
• Easy customisation by software
• Barcode printing
• Cash drawer connection
Citizen CT-S601II
• Printing Technology: Direct Thermal
• Print Speed (maximum): 200 mm /sec.
• Print Width (maximum): 45 / 48 / 52 / 54 / 64 / 68 / 72 / 80 mm
• Media Width (min to max): 58 / 60 / 80 / 83 mm (+/- 1mm)
• Media Thickness (min to max): 65 to 75 μm or 75 to 150 μm or 85 to 150 μm
• Control panel: Feed button, 3 LEDs
• Drivers and software: Free-of-charge from website, including support for various platforms
• Size (W x D x H) and Weight: 145x192x148 mm, 2 Kg, DC version 145x192x120, 1.6 Kg
• Emulations (Languages): ESC/POS™, Barcodes, UPC-A, UPC-E, EAN-13 (JAN-13), EAN-8(JAN-8), CODE39, CODE93, CODE128, CODABAR(NW-7), PDF 417, QR Code
• Media type: Thermal receipt paper
• Cutter: Guillotine type, full and partial
• Drawer kick-out: 2 Drawers
• Power supply: 100 – 240V, 50-60 Hz, external power supply (supplied) or 24V DC
• Reliability: 200 Million pulses or 150 Km, 2 million cuts
• EMC and safety standards: CE, UL, TUV, C-UL, FCC class A
• Number of columns: On 58mm paper up to 35 digits (12 x 24 font A), On 58mm paper up to 46 digits (9 x 17 font B), On 58mm paper up to 52 digits (8 x 16 font C), On 60mm paper up to 36 digits (12 x 24 font A), On 60mm paper up to 48 digits (9 x 17 font B), On 60 mm paper up to 54 digits (8 x 16 font C), On 80mm paper up to 64 digits (9 x 17 font B), On 80mm paper up to 72 digits (8 x 16 font C), On 83mm paper up to 53 digits (12 x 24 font A), On 83mm paper up to 71 digits (9 x 17 font B), On 83mm paper up to 80 digits (8 x 16 font C), On 80mm paper up to 48 digits (12 x 24 font A)
• Character table / Code page: Alphanumeric, International characters, Katakana, Thai code18, WPC1252, 437, 850, 852, 857, 858, 860, 863, 864, 865, 866
• Line spacing: 4.23mm (1/6 inch); adjustable by user comand
• Paper: Mitsubishi Paper Mills P220AG normal type 65, Mitsubishi Paper Mills F230AA normal type 65, Mitsubishi, Paper Mills P220AB normal type 85, Oji Paper PD160R high storage type 65/75, Nippon Paper TF50KS-E-2D, Mitsubishi Paper Mills P220A, Mitsubishi Paper Mills PB670 (2 color paper)
• Input buffer: 4K bytes / 45 bytes
• Operation environment: +5 to +45°C, 10% - 90% RH, non condensing
• Storage environment: -20 to +60°C (10% to 90% RH non condensing)
• Resolution: 203 dpi
