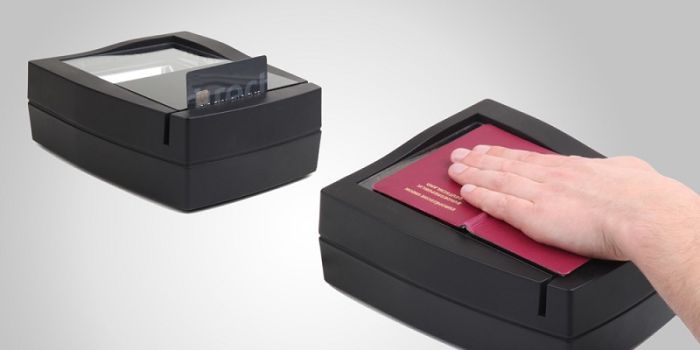

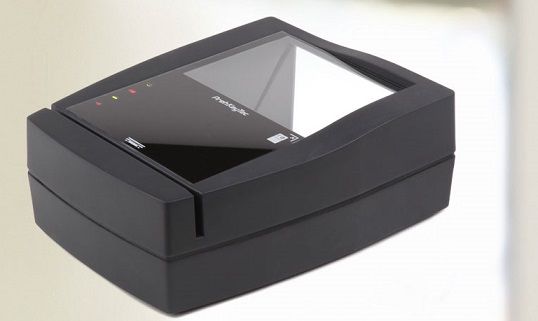

PROFESSIONAL DOCUMENT READER - PKT 4000
This document reader is the ideal solution to read multiple documents quickly and easily. Up to three independent readers provide the user with support for fast data entry. The scanner for reading ID and travel documents, capture images and read 1D or 2D barcodes. The bidirectional magnetic card reader for reading credit cards and customer or service cards.
The optional RFID reader can read ePassports according to ICAO.
The PKT 4000 is the ideal solution in all situations in which fast recording of:
- passports
- ID cards
- driving license
- visas
This document reader is mostly used in applications of :
- Border control
- Visa centers of Embassies
- Aviation security services
- Immigration services
- Hotels
- Travel agencies
- Airports, train and bus terminals
- Local police station
- Car rental and leasing companies
- Premise and hospitality security service
- Mobile operators
- Banking
FEATURES
3-track magnetic card reader
MSR FOID (optional)
1D and 2D barcode reader for printed documents and mobile phones
Reads Passports, ePassports, ID cards, visas
LED based imaging
RFID reader (optional)
One USB port for external devices
One-step scanning
Status indicator LEDs
Buzzer for acoustic feedback
Techn. Specification
Imaging | Active scan area: 90 x 123 mm Illumination: red LED 630nm Image format: JPG (others on request) Resolution: 844 x 640 pixel |
Bar Codes | 2D: PDF 417, DataMatrix, QR-Codes, Aztec 1D: Code39, Code128, Industrial 2 of 5, EAN 13, interleave 2 of 5 Others on request Reading from paper documents or mobile phones |
Reading Capability | Auto-detection of 2 or 3 line MRZs according to ICAO 9303 |
Magnetic Card Reader | Card can be swiped in both directions Reads track 1, 2 and 3 in accordance with ISO 7810, ISO 7811 Magnetic head can perform over 500,000 read cycles |
Optional | RFID ePassport reader (ISO 14443 A/B, ISO 15693, ISO 18000-3) One SAM slot |
Radio Interference | The device complies with the limit values of the following standards with regard to radio interference: 1. EN 55022 2. FCC part 15, limit class A |
Software Development KIT (SDK) | Including libraries and services with demo applications Windows© 7, XP (32/64 bit) |
Technical Data | Size: 91 x 191 x 234 mm IP rate: IP54 from top side PC Interface: USB 2.0 Additional interfaces: One USB 2.0 downstream ports Power supply: External power supply 5V |
Download technical sheet here.
